Import

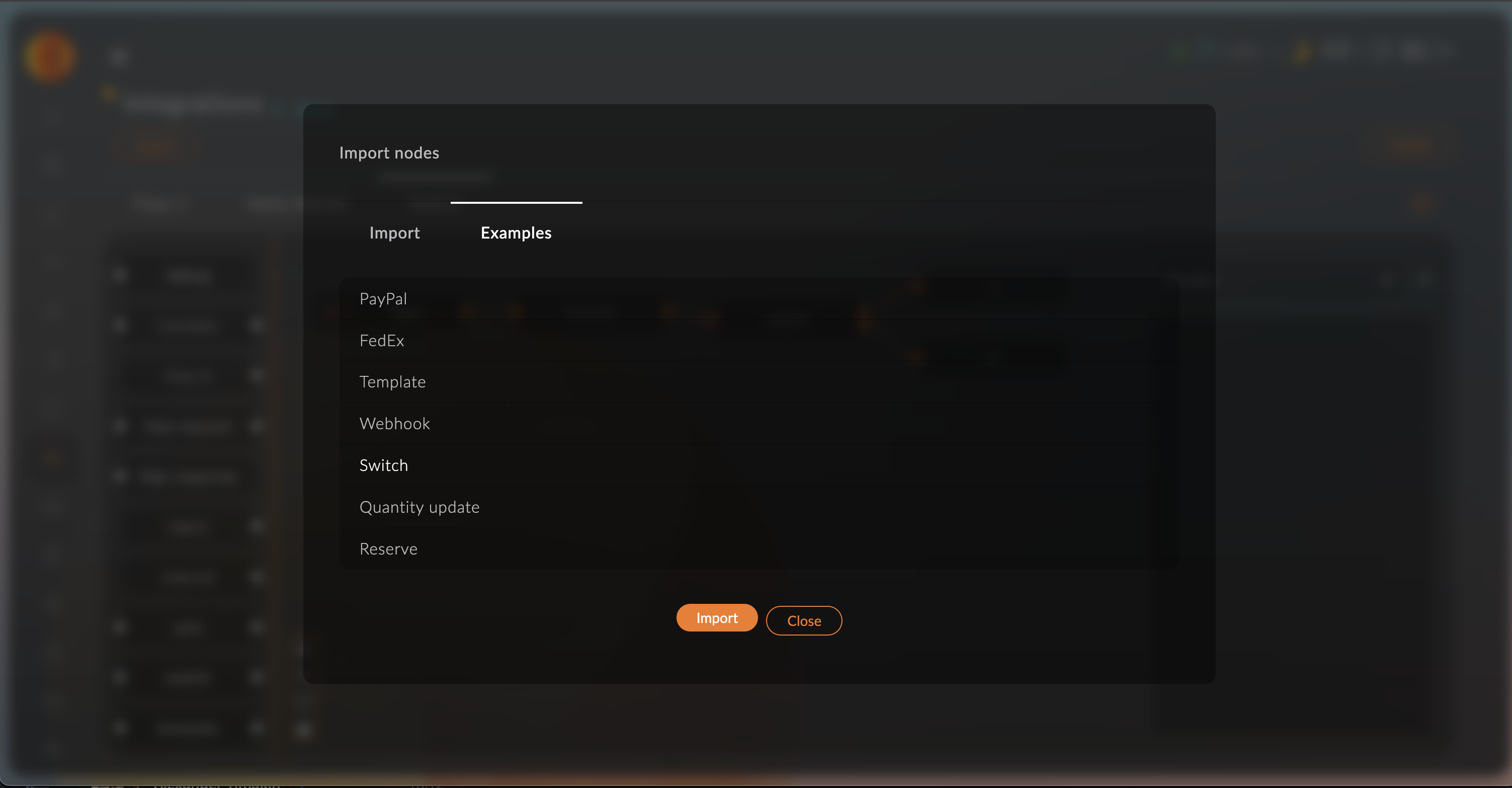

The import function allows you to import a ready-made schema from the clipboard, from a file, or select from a list of examples.

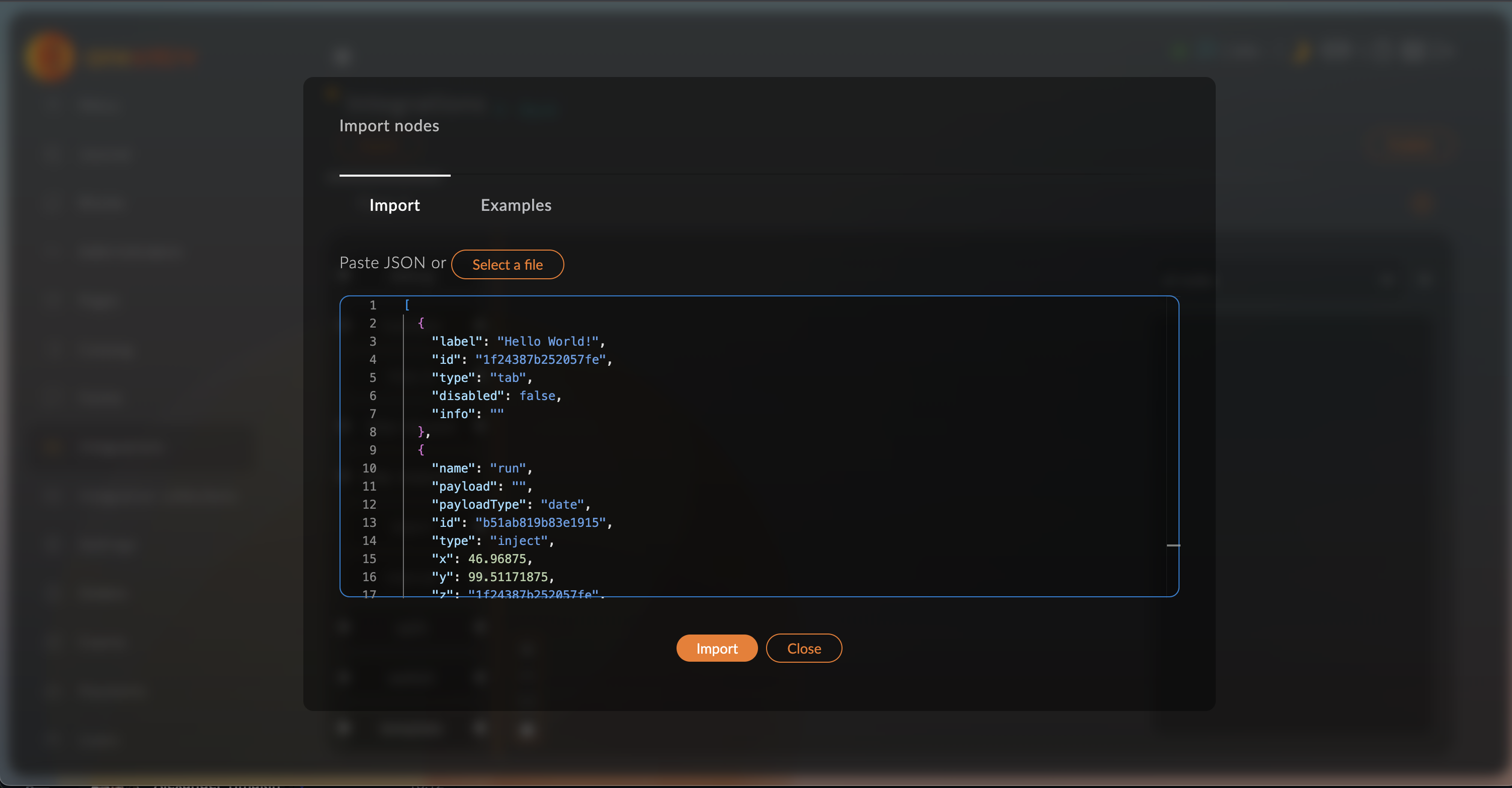

Import from JSON

Copy this example and paste it into the editor, then click the Import button.

[
  {

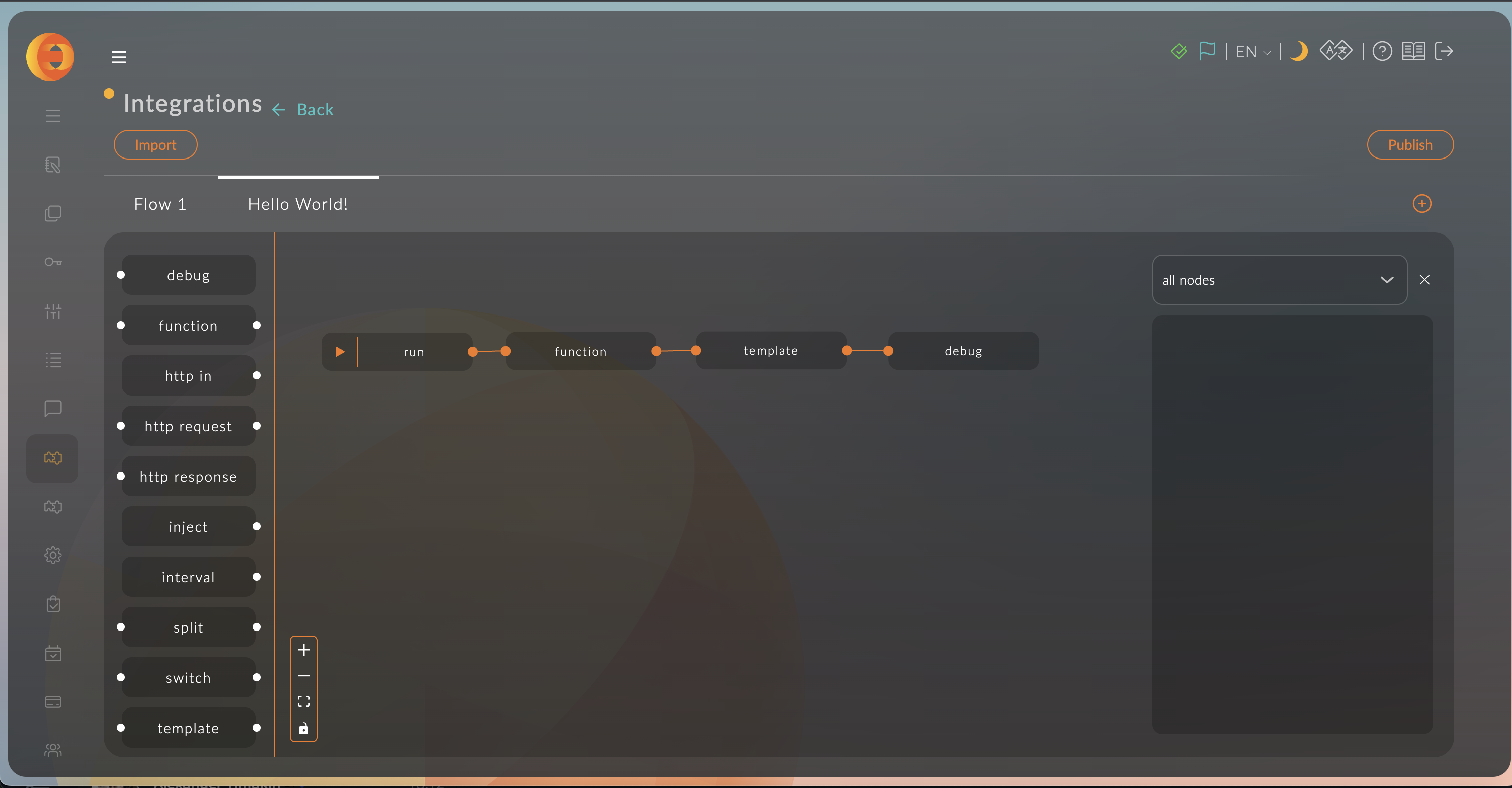

    "label": "Hello World!",
    "id": "1f24387b252057fe",
    "type": "tab",
    "disabled": false
  },
  {
    "name": "run",
    "id": "b51ab819b83e1915",
    "type": "inject",
    "x": 46.96875,
    "y": 99.51171875,
    "z": "1f24387b252057fe",
    "wires": [
      [
        "bd07e1ff0aedba0b"
      ]
    ]
  },
  {
    "id": "2b524ca59e4ed633",
    "type": "debug",
    "name": "debug",
    "x": 610.05078125,
    "y": 98.59765625,
    "z": "1f24387b252057fe",
    "wires": []
  },
  {
    "name": "function",
    "func": "msg.payload = 'World'\n\nreturn msg;",
    "id": "bd07e1ff0aedba0b",
    "type": "function",
    "x": 229.62890625,
    "y": 98.8515625,
    "z": "1f24387b252057fe",
    "wires": [
      [
        "2e1172b330c69aeb"
      ]
    ]
  },
  {
    "id": "2e1172b330c69aeb",
    "type": "template",
    "name": "template",
    "x": 418.66796875,
    "y": 98.19140625,
    "z": "1f24387b252057fe",
    "syntax": "mustache",
    "template": "Hello {{payload}} !",
    "output": "str",
    "wires": [
      [
        "2b524ca59e4ed633"
      ]
    ]
  }
]
